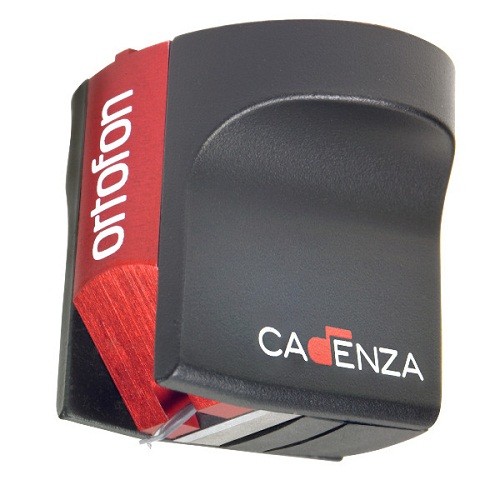

Ortofon Cadenza Red

The Red model is using a nude fine line stylus with a cylindrical aluminium cantilever. The stylus tip radius is r/R 8/40 µm. The coils are made from 6NX (99.9999 %) pure silver wire. An improved winding process on the armature allows a better channel balance. The sound picture of Cadenza Red is more relaxed, homogeneous and moderately dynamic in the perspective compared to the Cadenza Blue and have great space and depth in the stereo image.

Technical data:

Output voltage at 1 kHz 5 cm/sec  0,45 mV

Channel balance  < 1,5 dB

Channel separation at 1 kHz  > 23 dB

Channel separation at 15 kHz  > 15 dB

Frequency range at -3 dB  20 Hz - 50 kHz

Frequency response 20 Hz - 20 kHz  +3/-1

Tracking ability at 315 Hz at recommended tracking force *)  80 μm

Compliance, dynamic, Lateran  12 μm/mN

Stylus type  Nude Fine Line on Alu cantilever

Stylus tip radius                 r/R 8/40

Tracking force range  2,2-2,7 g (22-27 mN)

Tracking force recommended  2,5 g (25 mN)

Tracking angle  20º

Internal impedance, DC resistance  5 Ohm

Recommended load impedancje  50-500 Ohm

Cartridge body material                 Stainless steel Aluminium

Cartridge colour  Red/Black

Cartridge weight  10,7 g

*) Typical value

A BRAND-NEW item
