Phono Cartridges
Ortofon MC Cadenza Blue wstecz
MC Cadenza Blue Nude Fritz Gyger 80 Diamond

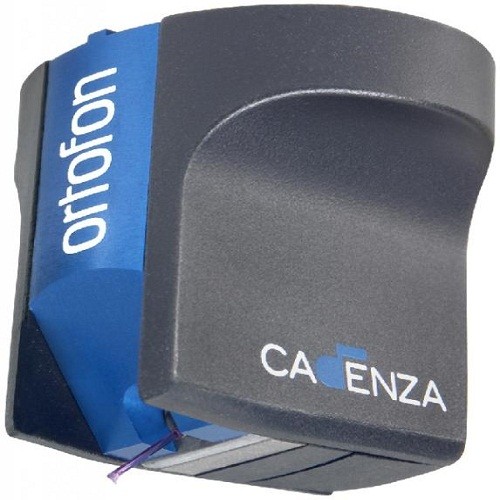

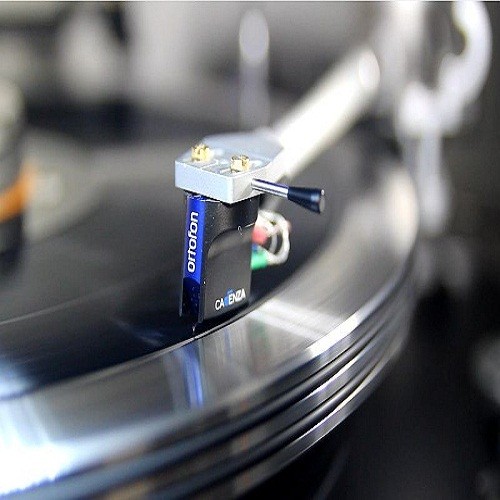

Ortofon Cadenza Blue



The Blue model is using a Nude FG 70 stylus with a very thin ruby cantilever. The improved winding

process on the armature ensures better channel balance. The soundstage of Cadenza Blue is wide open and grandiose straight out of the box. Micro dynamic and ambience will be evident when listening to complex compositions. It reaches a very high degree of definition in the

perspective, which is very present. It is true to the music with a tremendous clarity.



Technical data:

Output voltage at 1 kHz 5 cm/sec  0,5 mV

Channel balance  < 1,2 dB

Channel separation at 1 kHz  > 23 dB

Channel separation at 15 kHz  > 15 dB

Frequency range at -3 dB  20 Hz - 50 kHz

Frequency response 20 Hz - 20 kHz  +2/-1

Tracking ability at 315 Hz at recommended tracking force *)  80 μm

Compliance, dynamic, Lateran   12 μm/mN

Stylus type  Nude FG 70 on Ruby cantilever

Stylus tip radius  r/R 6/70

Tracking force range  2,2-2,7 g (22-27 mN)

Tracking force recommended  2,5 g (25 mN)

Tracking angle  20º

Internal impedance, DC resistance  5 Ohm

Recommended load impedancje  50-200 Ohm

Cartridge body material                 Stainless steel Aluminium

Cartridge colour  Blue/Black

Cartridge weight  10,7 g

*) Typical value



A BRAND-NEW item



Offers and product information:

shop@vinyl-gold.com

Price: 8 299,00 zł



Availability: Yes



Sending: 5 days
