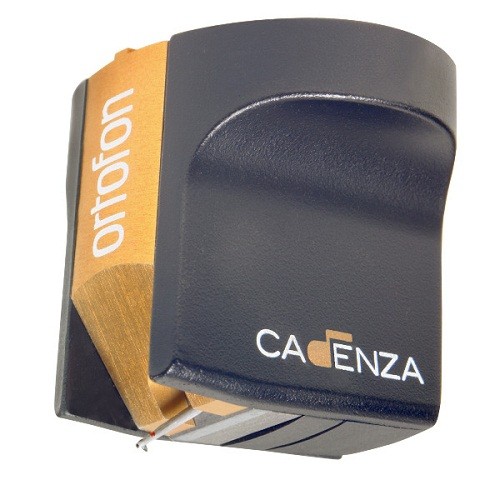

Ortofon Cadenza Bronze

The Bronze model is using a Replicant 100 stylus and a conical aluminium cantilever. The coil wire

is the famous Ortofon Aucurum wire, which is a gold plated 6NX copper wire. A Field Stabilizing

Element, FSE, is used for optimal linearity especially Turing complex crescendo passages. Cadenza Bronze is a true high-end reference cartridge, conveying music with supreme

precision, impact and dynamics. Its stereo imaging capabilities illuminate the farthest corners of the soundstage in all three dimensions.

Technical data:

Output voltage at 1000 Hz, 5cm/sec.  0,4 mV

Channel balance at 1 kHz  < 1 dB

Channel separation at 1 kHz  > 24 dB

Channel separation at 15 kHz  > 20 dB

Frequency range at - 3dB  20 - 55 kHz

Frequency response 20 Hz - 20 kHz  +/-1,5

Tracking ability at 315Hz at recommended tracking force *)  80 µm

Compliance, dynamic, Lateran  12 µm/mN

Stylus type  Nude Ortofon Replicant on conical alu cantilever

Stylus tip radius   r/R 5/100 µm

Tracking force range  2,2-2,7 g (22-27 mN)

Tracking force, recommended  2,5 g (25 mN)

Tracking angle  23°

Internal impedance, DC resistance  5 Ohm

Recommended load impedancje  50-200 Ohm

Cartridge body material                 Stainless steel / Aluminium

Cartridge colour  Bronze/Black

Cartridge weight  10,7 gram

*) Typical value

A BRAND-NEW item
