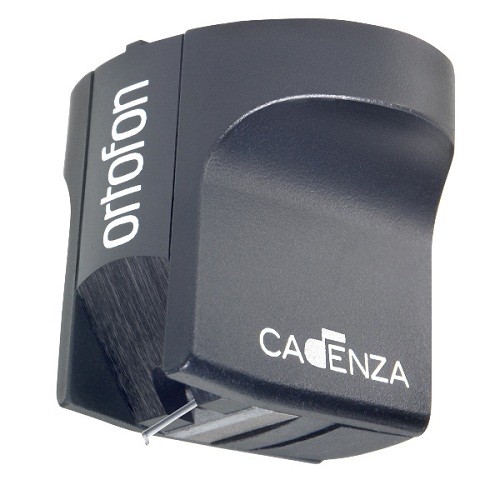

Ortofon Cadenza Black

The Black model is using a Nude Shibata styluswith a boron cantilever. The effective mass of the

stylus/cantilever system is extremely low due to the use of a very thin boron rod. This material is

extremely stiff and even more lightweight than aluminium. It also uses the WRD (Wide Range Damping-system), controlling the high and low frequency damping separately. Cadenza Black is

optimized for an amazing tonal neutrality, dynamics and purity of sound. It is high performing on areas like detail, consistency and sound staging.

Technical data:

Output voltage at 1000 Hz, 5cm/sec.  0,33 mV

Channel balance at 1 kHz  < 0,8 dB

Channel separation at 1 kHz  > 27 dB

Channel separation at 15 kHz  > 20 dB

Frequency range at - 3dB  20 - 60.000 Hz

Frequency response 20 kHz - 20 kHz  +1,5/0

Tracking ability at 315Hz at recommended tracking force *)  90 µm

Compliance, dynamic, Lateran  16 µm/mN

Stylus type  Nude Shibata on Boron cantilever

Stylus tip radius   r/R 6/50 µm

Tracking force range  2,0-2,5 g (20-25 mN)

Tracking force, recommended  2,3 g (23 mN)

Tracking angle  20°

Internal impedance, DC resistance  5 Ohm

Recommended load impedancje  > 10 Ohm

Cartridge body material                 Stainless steel Aluminium

Cartridge colour  Black/Black

Cartridge weight  10,7 gram

*) Typical value
