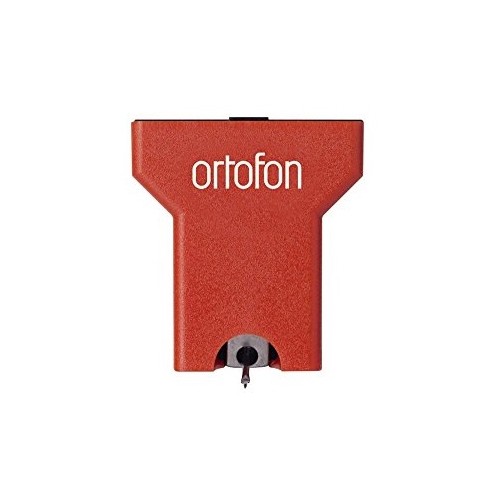

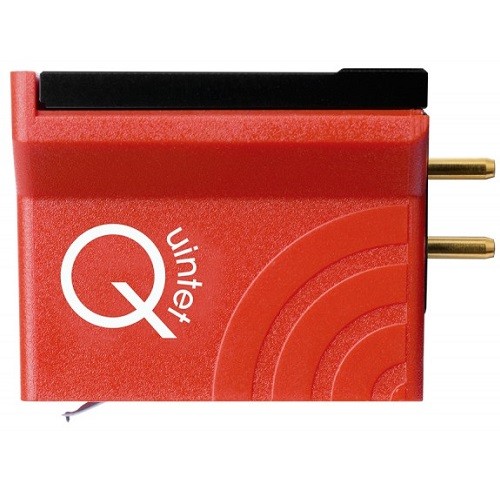

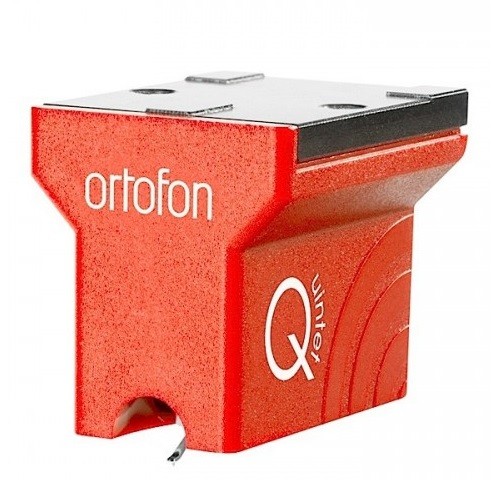

MC Quintet Red

Quintet Redis a perfect introduction to the world of Ortofon moving coils. It features an Ellipticaldiamond which is cut and polished to Ortofon’s standards. This entry-level MC cartridge has very high price-to-performance ratio and is a perfect all-rounder for the newcomers to the world of Moving Coil cartridges.

Technical Data:

Output voltage at 1 kHz 5 cm/sec  0.5 mV

Channel balance  < 1.5 dB

Channel separation at 1 kHz  > 21 dB

Channel separation at 15 kHz  > 14 dB

Frequency range at -3 dB  20 - 25.000Hz

Frequency response 20-20.000 Hz  +/-2.5 dB

Tracking ability at 315 Hz at recommended tracking force *)  65 μm

Compliance, dynamic, Lateran  15 μm/mN

Stylus type  Elliptical

Stylus tip radius  r/R 8/18 μm

Tracking force range  2.1-2.5 g (21-25 mN)

Tracking force recommended  2.3 g (23 mN)

Tracking angle  20º

Internal impedance, DC resistance  7 Ohm

Recommended load impedancje  >20 Ohm

Cartridge body material  ABS/Aluminium

Coil wire material  Copper

Cartridge colour  Red

Cartridge weight  9 g

*) Typical value
